Hytera BD502i-U1 UHF Digital Radio | Hytera's BD502i-U1 two-way DMR radio is a compact and rugged radio that provide professional communication in an easy-to-use package. The BD502i features analog and digital operation, 48 channels, clear digital audio, extended talk range, and 16 hours of battery life. The sleek and powerful BD552i has great features like a single-line display, clear digital audio, operation in analog and digital mode, 256 channels, optional Bluetooth and repeater mode operation
400-470MHZ 3 ZONE 4W 1500mAh Li-Ion IP54 |

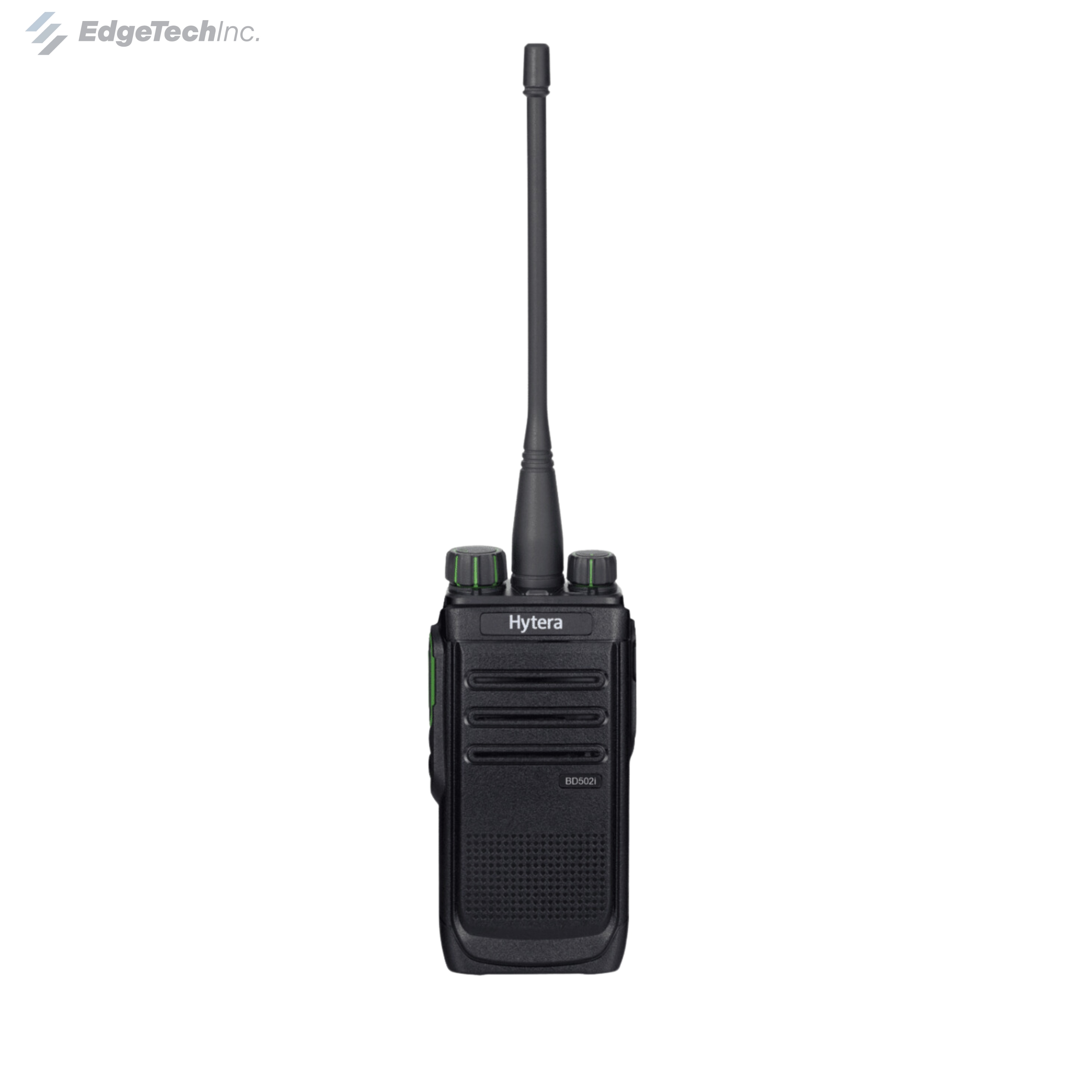

Hytera BD502i-U1
The BD502 is built to uphold Military Standards 810 C, D, E, F, and G, together with temperature shock, vibration, high altitude, and wetness. Additionally, the IP54 mud and waterproof compliance ensure reliability in a wide variety of environments. The radio can operate in digital mode for up to twenty-two hours due to TDMA technologyFeatures: - Size 4.25"x2.12”x1.14”; Weight 7.68oz (with 2200mAh battery and AN0435H19)
- Dual-mode (analog & digital)
- 64 contacts in digital mode
- 12.5/25kHz selectable channel spacing
- IP54 dust and water-proof design
- 48 channels, 3 zones
- Battery life: 16 hours under a duty cycle of 5-5-90 @ 1500mAh in digital mode
- Clear digital voice call function
- Anti-interference
- DMR signaling
- One-touch call
- Digital voice call function
- Scan (analog or digital channel only)
- MIL-STD-810 C/D/E/F/G standards
- Supports mixed (analog & digital) channel receive
- Emergency Alarm (via programming)
- VOX
- Pseudo Trunk
This Item Includes: - UHF Whip antenna 400-470 MHz SMA (AN0435W09)
- Battery Li-ion 1500 mAh IP67 (BL1506)
- Spring belt clip (BC19)
- Clip screws (HYT-7103007500000)
- Rapid-rate charger (Li-ion / Ni-MH) with PS1014 transformer (CH10L23-PS1014)
- Leather hand strap
- User manual
- 3-year warranty
Item is in stock and usually ships same day if orders are place before 8pm Eastern Standard Time Free Shipping on all orders over $1000 Expedited shipping available for additional cost Shipping rates available in shopping cart Product may be returned if unopened and unused within 7 days of purchase Returns after 7 days or for products that demonstrate usage will not be accepted for returns but accepted as warranty repairs only
- Frequency range
- UHF: 400-470 MHz VHF: 146-174 MHz
- Channel capacity
- BD502i: 48 Channels (24 Analog, 24 Digital)
- BD552i: 256 Channels (128 Analog, 128 Digital)
- Zone capacity
- BD502i: 3 Zones with 16 Channels per Zone
- BD552i: 16 Zones with 16 Channels per Zone
- Channel spacing
- 25/12.5KHz
- Operating voltage
- 3.7 V
- Battery
- 1500Ah (Li-Ion) 2000Ah (Li-Ion)
- Battery service life (5/5/90)
- Analog: 12/16 hours (1500mAh) Digital:16/22 hours (2000mAh)
- Frequency stability
- ±0.5 ppm
- Antenna impedance
- 50 Ω
- Dimensions (H×W×D)
- 4.25" x 2.12" x 1.14", 108×54×29mm
- Weight
- 8 oz. (with AN0435W09 and BL1506)
- Display
- BD352i: 0.91” OLED single-line display
Transmitter- RF Power Output
- VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W
- FM Modulation
- 11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
- 4FSK Digital Modulation (Digital Emissions Designator)
- 12.5 kHz (data only): 7K60FXD 12.5 kHz (voice & data): 7K60FXW
- Conducted/Radiated Emission
- -36 dBm < 1 GHz -30 dBm > 1 GHz
- Modulation limiting
- ±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
- FM Hum & Noise
- 40 dB at 12.5 kHz 45 dB at 25 kHz
- Adjacent channel selectivity
- 60 dB at 12.5 kHz 70 dB at 25 kHz
- Audio Response
- +1 ~ -3dB
- Audio Distortion
- ≤ 3%
- Digital vocoder type
- AMBE++
- Digital Protocol
- ETSI-TS102 361-1,-2,-3
Receiver- Digital Sensitivity
- 0.22μV / BER 5%
- Analog Sensitivity
- 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
- Adjacent channel selectivityTIA-603
- 60dB @ 12.5KHz/70dB @ 25KHz
- IntermodulationTIA-603
- 65dB @ 12.5/25KHz
- Spurious response rejectionTIA-603
- 70dB @ 12.5/25KHz
- Hum & Noise
- 40dB @ 12.5KHz 45dB @ 25KHz
- Rated Audio Power Output
- 0.5W
- Rated Audio Distortion
- ≤3%
- Audio Response
- +1 ~ -3dB
- Conducted spurious emission
- < -57 dBm
Environmental- Operating temperature
- -30 °C to +60 °C
- Storage temperature
- -40 °C to +85 °C
- ESD
- IEC 61000-4-2 (level 4) ±8 kV (contact ) ±15 kV (air)
- Dustproof & Waterproof
- IP54 Standard
- Humidity
- Per MIL-STD-810 C/D/E/F/G Standard
- Shock & Vibration
- Per MIL-STD-810 C/D/E/F/G Standard
