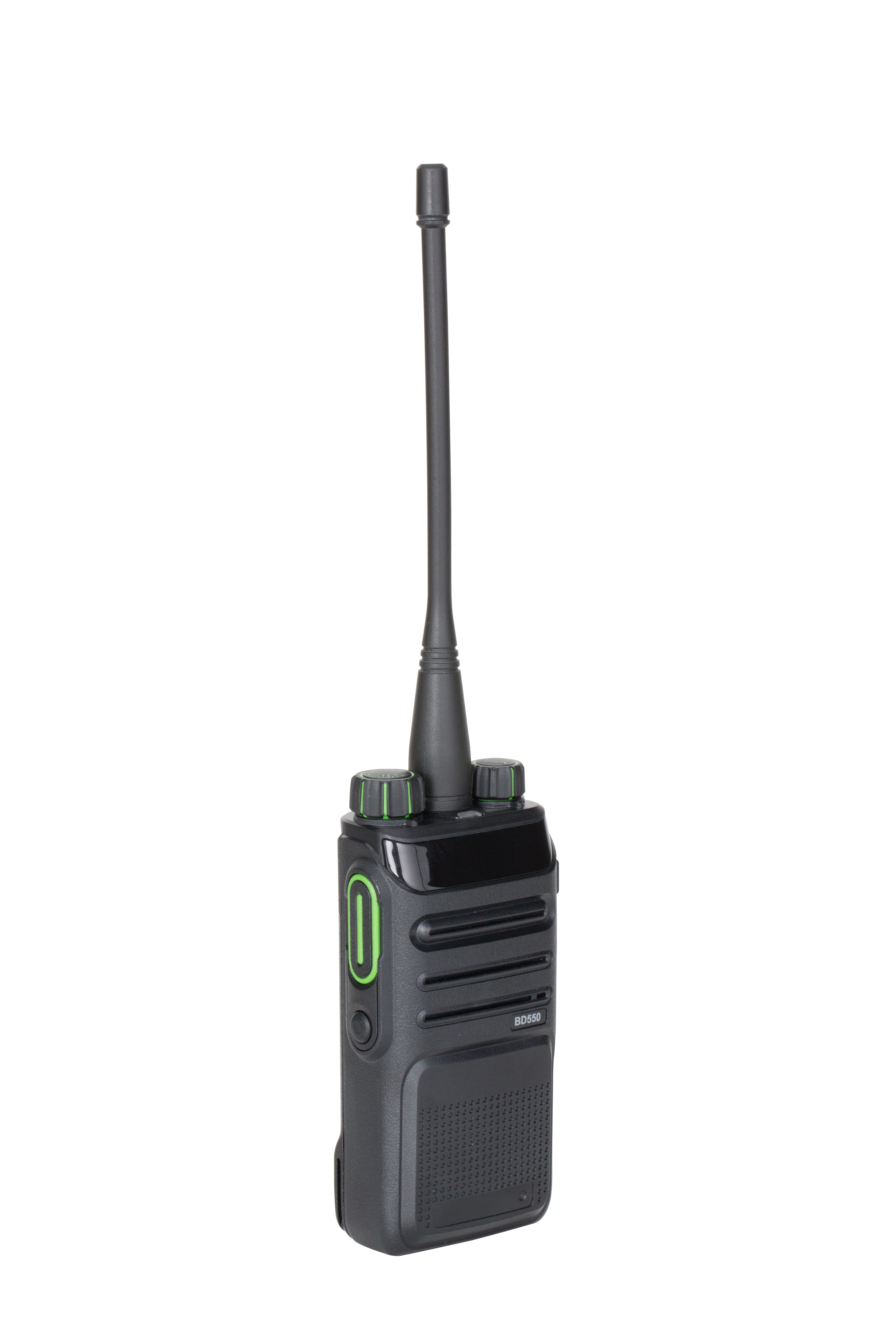

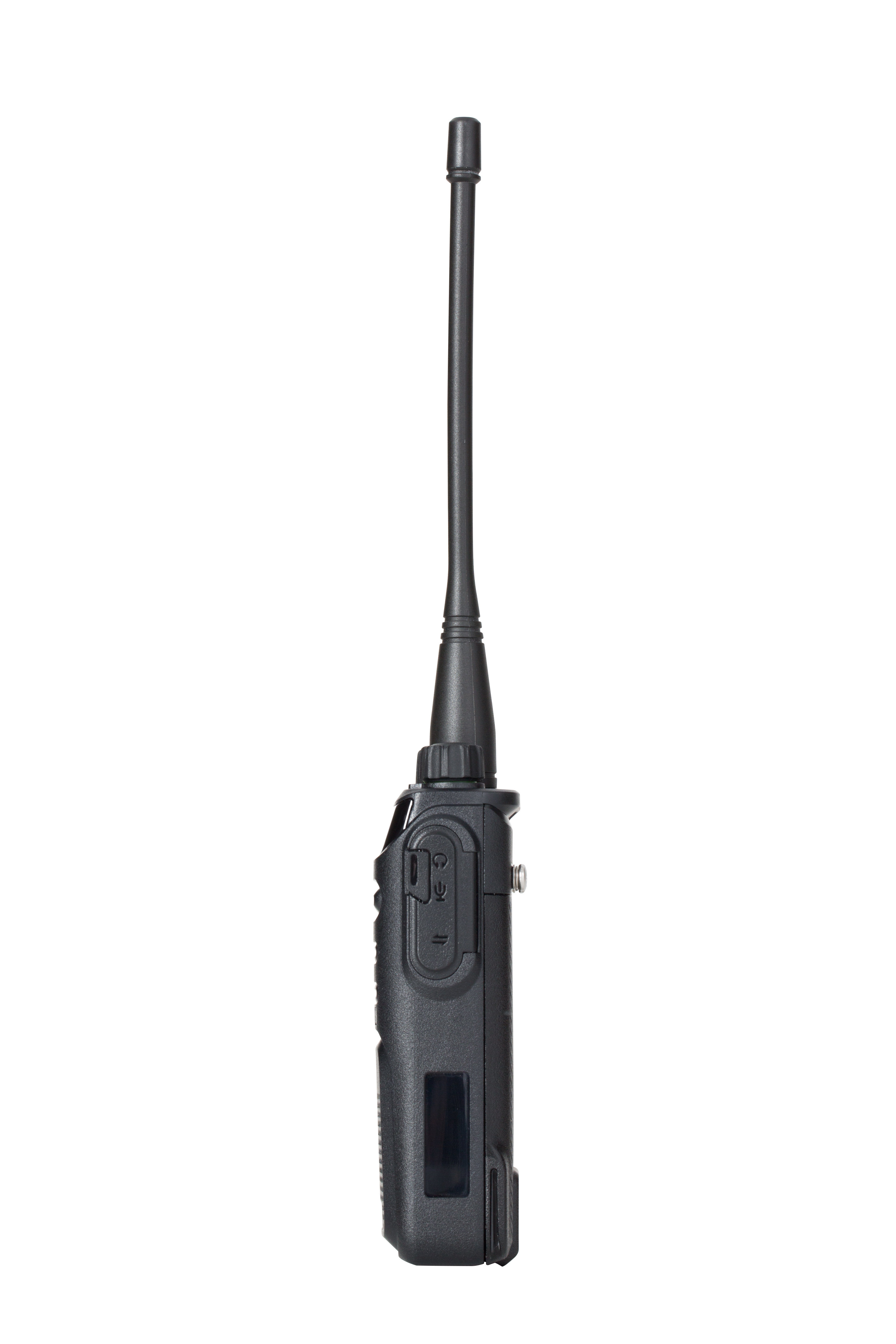

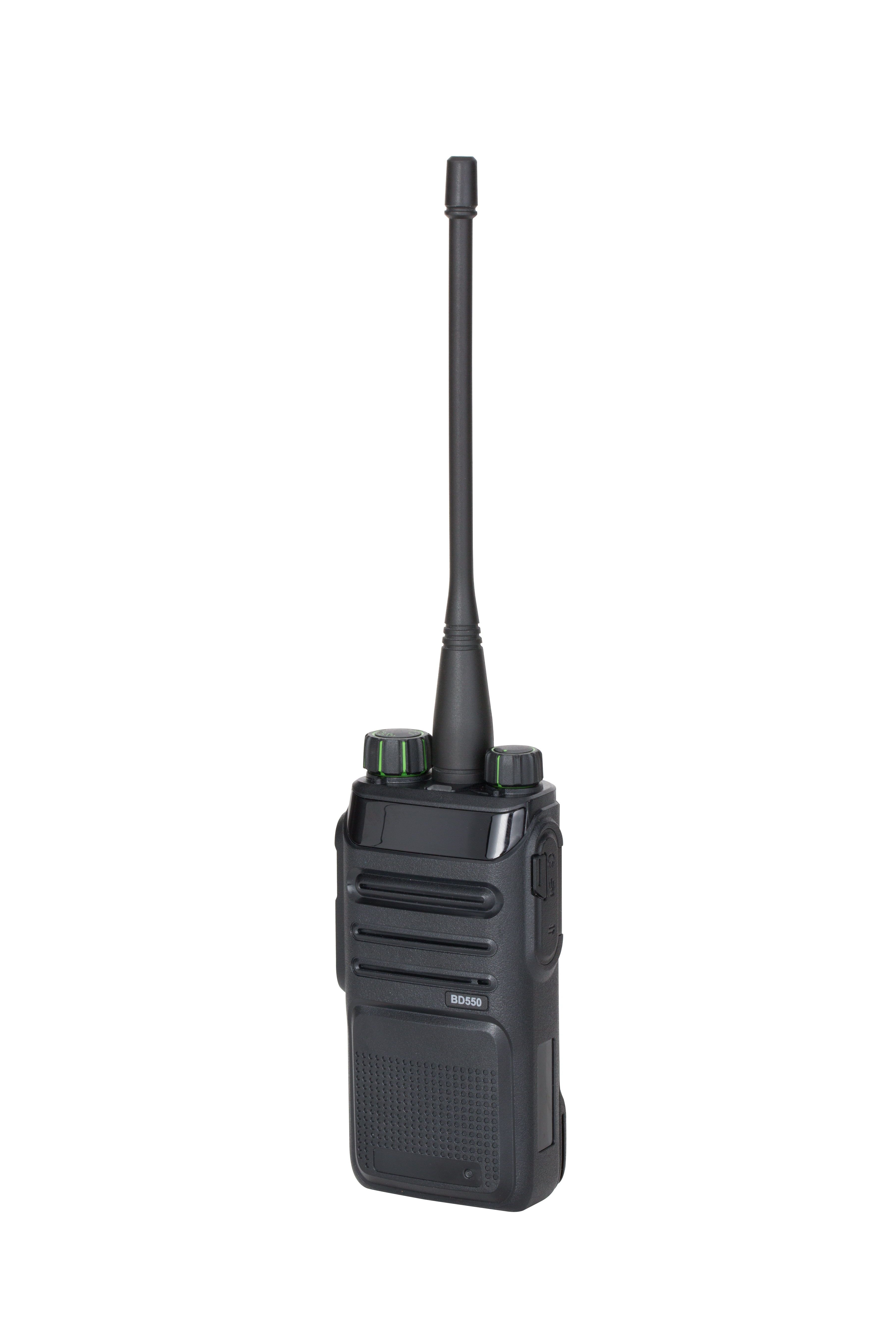

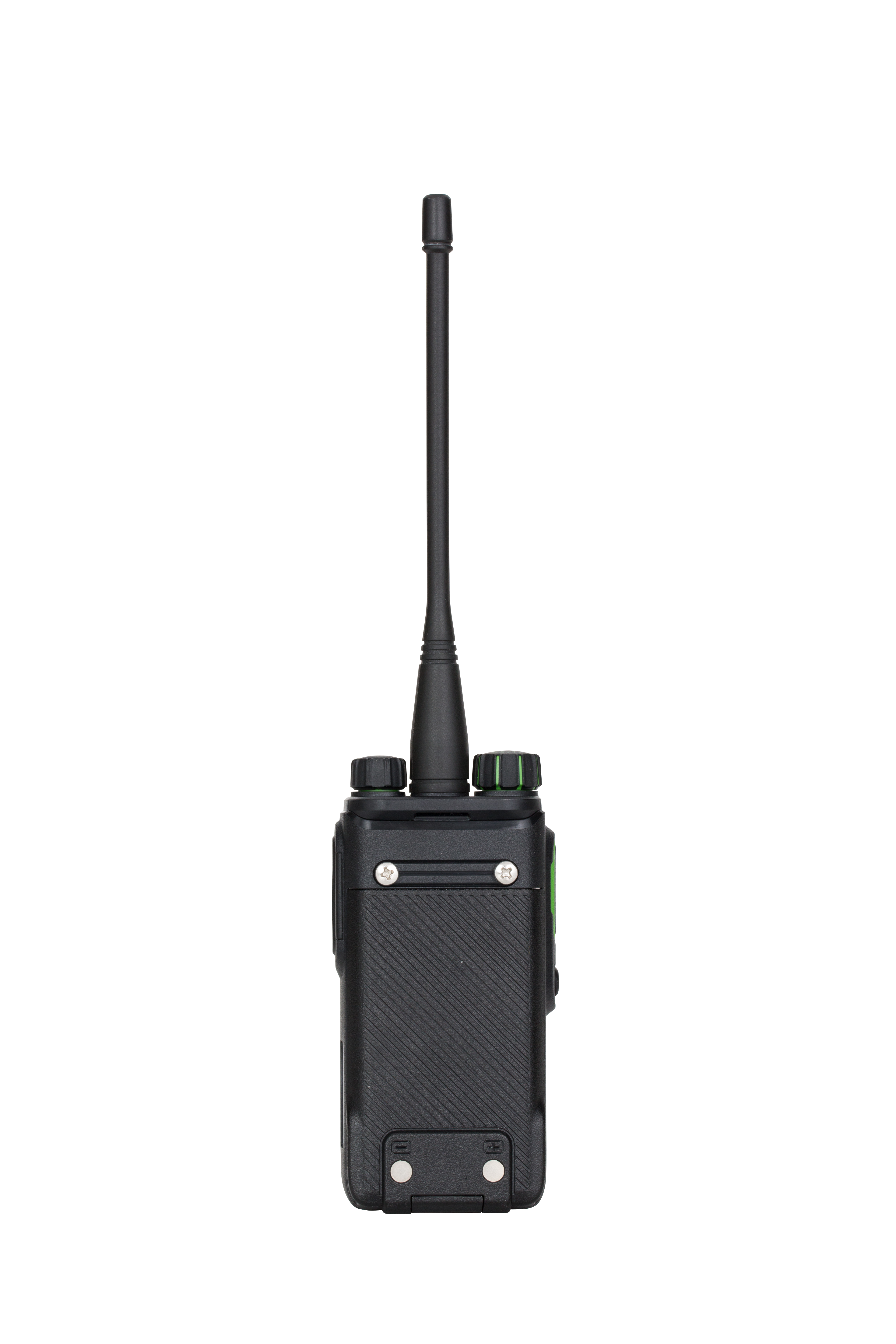

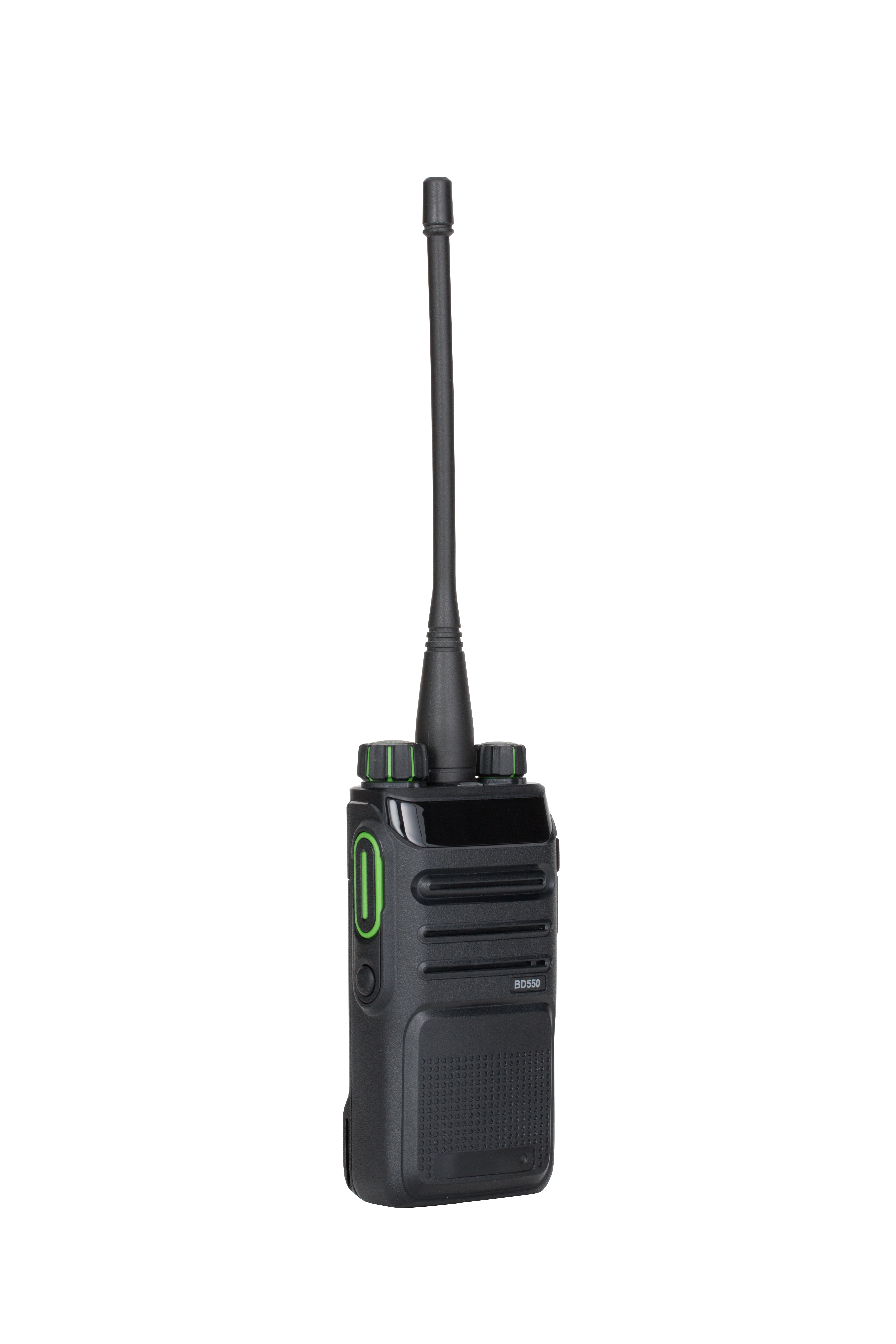

Hytera BD552i-BT-V1
VHF Digital Radio | | The lightweight, easy operation, excellent performance, makes this two-way radio a perfect communicating device. The BD552i-BT-V1 two-way radio provides professional communication offering16 hr battery life, 48 channels, IP54 dust and water-proof design with programmable emergency alarm in an easy-to-use package. This model operates at 147-160MHz and has an inbuilt VOX. Featuring one-touch call, Analog/Digital mode for scan, voice call & channel receive. |
Item is in stock and usually ships same day if orders are place before 8pm Eastern Standard Time
Free Shipping on all orders over $1000
Expedited shipping available for additional cost
Shipping rates available in shopping cart
Product may be returned if unopened and unused within 7 days of purchase
Returns after 7 days or for products that demonstrate usage will not be accepted for returns but accepted as warranty repairs only
- Frequency range
- UHF: 400-470 MHz VHF: 146-174 MHz
- Channel capacity
- BD502i: 48 Channels (24 Analog, 24 Digital)
- BD552i: 256 Channels (128 Analog, 128 Digital)
- Zone capacity
- BD502i: 3 Zones with 16 Channels per Zone
- BD552i: 16 Zones with 16 Channels per Zone
- Channel spacing
- 25/12.5KHz
- Operating voltage
- 3.7 V
- Battery
- 1500Ah (Li-Ion) 2000Ah (Li-Ion)
- Battery service life (5/5/90)
- Analog: 12/16 hours (1500mAh) Digital:16/22 hours (2000mAh)
- Frequency stability
- ±0.5 ppm
- Antenna impedance
- 50 Ω
- Dimensions (H×W×D)
- 4.25" x 2.12" x 1.14", 108×54×29mm
- Weight
- 8 oz. (with AN0435W09 and BL1506)
- Display
- BD352i: 0.91” OLED single-line display
Transmitter- RF Power Output
- VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W
- FM Modulation
- 11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
- 4FSK Digital Modulation (Digital Emissions Designator)
- 12.5 kHz (data only): 7K60FXD 12.5 kHz (voice & data): 7K60FXW
- Conducted/Radiated Emission
- -36 dBm < 1 GHz -30 dBm > 1 GHz
- Modulation limiting
- ±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
- FM Hum & Noise
- 40 dB at 12.5 kHz 45 dB at 25 kHz
- Adjacent channel selectivity
- 60 dB at 12.5 kHz 70 dB at 25 kHz
- Audio Response
- +1 ~ -3dB
- Audio Distortion
- ≤ 3%
- Digital vocoder type
- AMBE++
- Digital Protocol
- ETSI-TS102 361-1,-2,-3
Receiver- Digital Sensitivity
- 0.22μV / BER 5%
- Analog Sensitivity
- 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
- Adjacent channel selectivityTIA-603
- 60dB @ 12.5KHz/70dB @ 25KHz
- IntermodulationTIA-603
- 65dB @ 12.5/25KHz
- Spurious response rejectionTIA-603
- 70dB @ 12.5/25KHz
- Hum & Noise
- 40dB @ 12.5KHz 45dB @ 25KHz
- Rated Audio Power Output
- 0.5W
- Rated Audio Distortion
- ≤3%
- Audio Response
- +1 ~ -3dB
- Conducted spurious emission
- < -57 dBm
Environmental- Operating temperature
- -30 °C to +60 °C
- Storage temperature
- -40 °C to +85 °C
- ESD
- IEC 61000-4-2 (level 4) ±8 kV (contact ) ±15 kV (air)
- Dustproof & Waterproof
- IP54 Standard
- Humidity
- Per MIL-STD-810 C/D/E/F/G Standard
- Shock & Vibration
- Per MIL-STD-810 C/D/E/F/G Standard
| | TS-6500 (Hidden) | English - BD502 Brochure | Download |
|
| | BD50X | BD Series CPS V1.01.06.001NA2 | Download |
| | | TS-6500 (Hidden) | BD Series CPS V1.01.06.001NA2 | Download |
| | TS-6500 (Hidden) | CPS_V2.02.09.002.SA6 | Download |
|
| BD50X | BD Series CPS v1.02.01.006.NA2 | Download |
| | BD50X | BD Series CPS v1.02.01.006.SA6 | Download |
| | TS-6500 (Hidden) | BD Series CPS v1.02.01.006.NA2 | Download |
| | TS-6500 (Hidden) | BD Series CPS v1.02.01.006.SA6 | Download |
|
| | BD50X | BD50X UHF Service Manual V00 | Download |
| | BD50X | Flat Rate Repair & Installation Fee Schedule as of 11/11/2016 | Download |
| | TS-6500 (Hidden) | BD50X UHF Service Manual V00 | Download |
| | TS-6500 (Hidden) | Flat Rate Repair & Installation Fee Schedule as of 11/11/2016 | Download |
|
|
