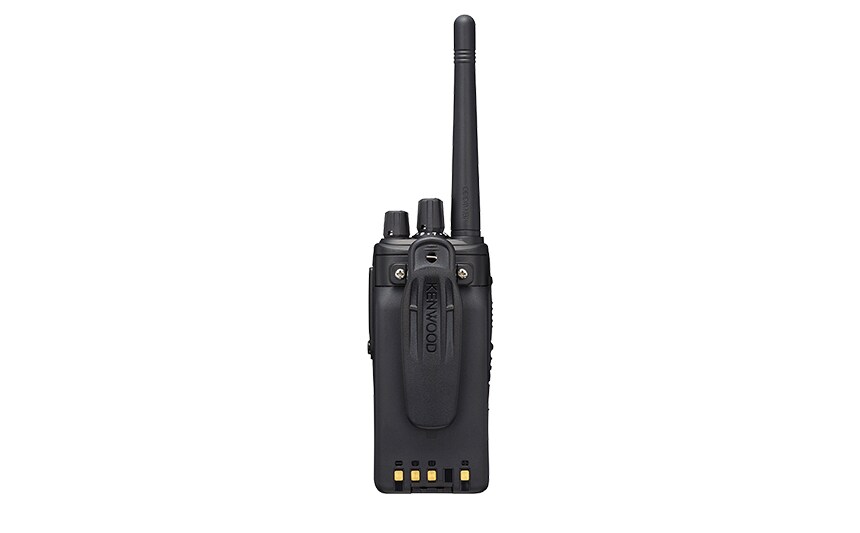

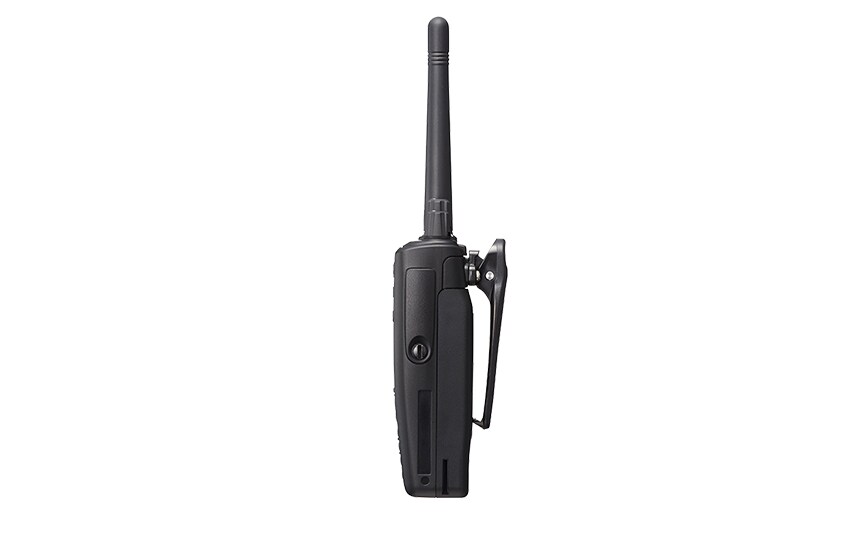

This item includes: Kenwood NX-3320K KRA-27M2 Belt Clip (KBH-11) KSC-25SK Charger 2-PIN Accessory Cover Channel Stopper User Manual
3 Year Warranty
Hands-free operation is vital for many NX-3000 users. The radios’ built-in Bluetooth® module is compatible with Headset and Serial Port Profiles (ver. 3.0) and keeps your hands free.
Featuring an integrated GPS module and antenna, NX-3000 portable radios can transmit positional data, enabling effective management when used with tracking applications like KAS-10 software. Mobile models can support GPS with the optional KRA-40G.
Secure communications are an essential requirement, especially for public safety applications. NX-3000 radios are equipped with 56-bit key Data Encryption Standard (DES) encryption. For even higher protection the radios can support 256-bit Advanced Encryption Standard (AES) encryption with optional module.

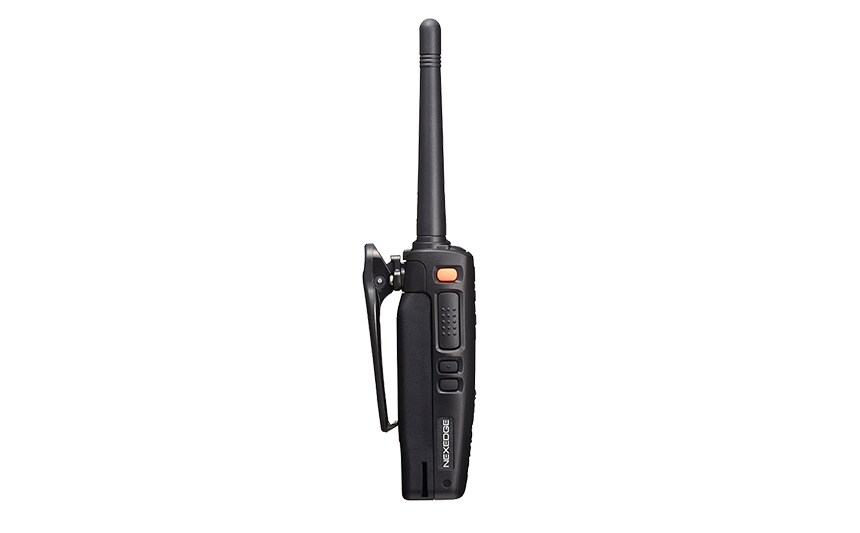

Man-down Detection, Stationary Detection, or Motion Detection will be automatically engaged when the embedded acceleration and tilt sensors detect unusual behavior. Lone Worker function automatically places the radio in Emergency Mode if it is not operated for a certain period of time. The bright orange Emergency Button is located at the top (portables) or front (mobiles) of the radio for high visibility and instant access when needed.
SPECIFICATIONS
GENERAL
NX-3220
NX-3320
Frequency Range
136-174 MHz
400 - 520 MHz
Max. Channels per Radio
Up to 1000 channels with option
Number of Channels
260 (64 for no LCD models)
Number of Zones
128 (4 for no LCD models)
Channel Spacing
Analog
12.5/15/20/25*1/30*1 kHz
12.5/25*1 kHz
Digital
6.25/12.5 kHz
6.25/12.5 kHz
Power Supply
7.5 V DC +-20 %
Battery Life (FDMA/TDMA) 5-5-90
With KNB-55L (1,480 mAh)
Approx. 8 hours / Approx. 9.5 hours
With KNB-56N (1,400 mAh)
Approx. 8 hours / Approx. 9 hours
With KNB-57L (2,000 mAh)
Approx. 11 hours / Approx. 13.5 hours
Operating Temperature
-22°F to +140°F (-30°C to +60°C)
Frequency Stability
+- 2.0 ppm
+- 1.0 ppm
Dimensions (W x H x D) *Projection not included *2
*1 25 and 30 kHz are not included in the models sold in USA or US territories. *2 Full Keypad/Std Keypad Models *3 Full Keypad Model Analog measurements made per TIA603. Specifications are measured according to applicable standards. Specifications shown are typical and subject to change without notice, due to advancements in technology.
