General data |
Frequency range | UHF: 430 - 470 MHz |
Channel capacity | 256 (128 Analog / 128 Digital) |
Zone capacity | 16 |
Channel spacing | 12.5/25 kHz |
Operating voltage | 3.7 V |
Battery | 2000 mAh Li-Ion |
Battery service life (5/5/90) | approx. 10 h (analog)
approx. 12 h (digital) |
Frequency stability | ±0.5 ppm |
Antenna impedance | 50 Ω |
Dimensions (H×W×D) | 4.84 x 2.17 x 0.91 Inches |
Weight | 5.64 oz |
| |
Transmitter |
RF Power Output | UHF: 1.5 / 3 W |
FM Modulation
(Analog Emissions Designator) | 11 K0F3E at 12.5 kHz
16 K0F3E at 25 kHz |
4FSK Digital Modulation
(Digital Emissions Designator) | 12.5 kHz (data only): 7K60FXD
12.5 kHz (voice & data): 7K60FXW |
Conducted/Radiated Emission | -36 dBm < 1 GHz
-30 dBm > 1 GHz |
Modulation limiting | ±2.5 kHz at 12.5 kHz
±5.0 kHz at 25 kHz |
FM Hum & Noise | 40 dB at 12.5 kHz
45 dB at 25 kHz |
Adjacent channel selectivity | 60 dB at 12.5 kHz
70 dB at 25 kHz |
Audio Response | +1 dB to -3 dB |
Audio Distortion | ≤ 3% |
Digital vocoder type | AMBE++ or SELP |
| |
Receiver |
Sensitivity (analogue) | 0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD) |
Sensitivity (digital) | 0.22 μV / BER 5% |
Adjacent channel selectivity
TIA-603
ETSI |
60 dB at 12.5 kHz / 70 dB at 25 kHz
60 dB at 12.5 kHz / 70 dB at 25 kHz
|
Intermodulation
TIA-603
ETSI |
70 dB at 12.5/25 kHz
70 dB at 12.5/25 kHz
|
Spurious response rejection
TIA-603
ETSI |
70 dB at 12,5/25 kHz
70 dB at 12.5/25 kHz
|
Spurious response rejection | 40 dB at 12.5 kHz
45 dB at 25 kHz |
Nominal audio power output | 0.4 W |
Nominal audio distortion | ≤ 5 % |
Audio sensitivity | +1 dB to -3 dB |
Conducted spurious emission | < -57 dBm |
| |
Environmental Specs |
Operating temperature range | -30 °C to +60 °C |
Storage temperature range | -40 °C to +85 °C |
ESD | IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge) |
Protection against dust and moisture | IP54 |
Shock and vibration resistance | MIL-STD-810 C/D/E/F/G |
Relative humidity | MIL-STD-810 C/D/E/F/G |
| |
All technical indications were tested according to the corresponding standards. Subject to change on the basis of continuous development.

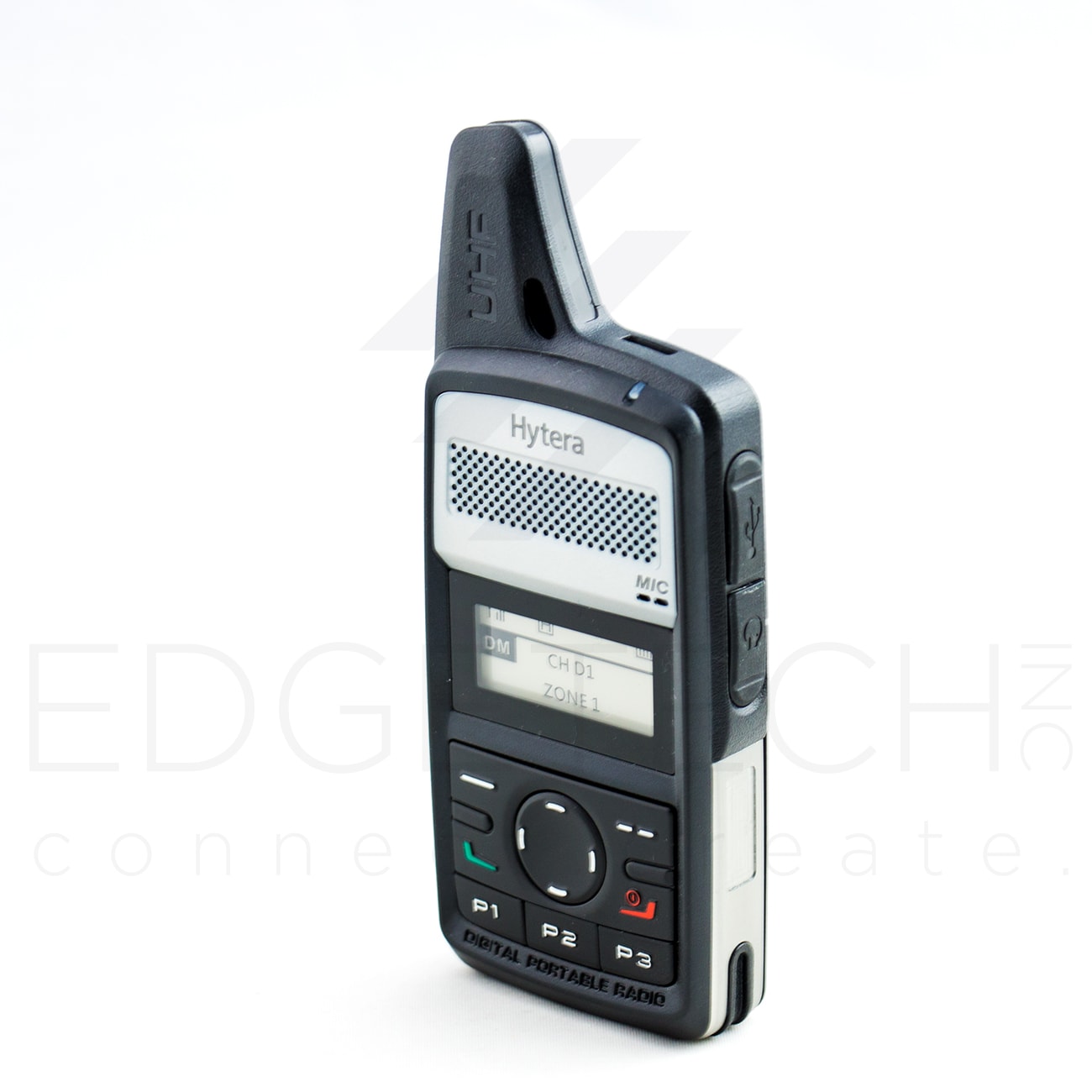

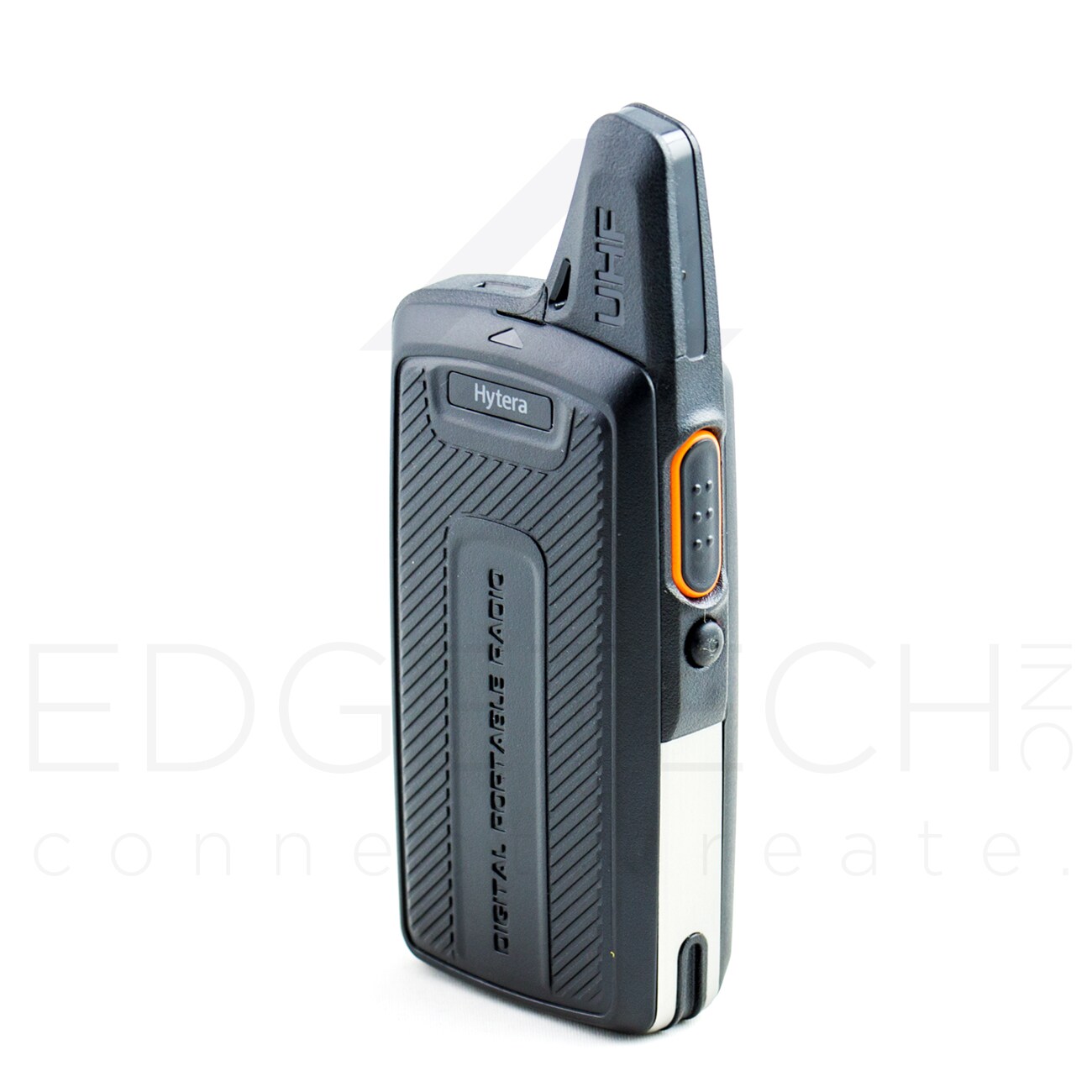

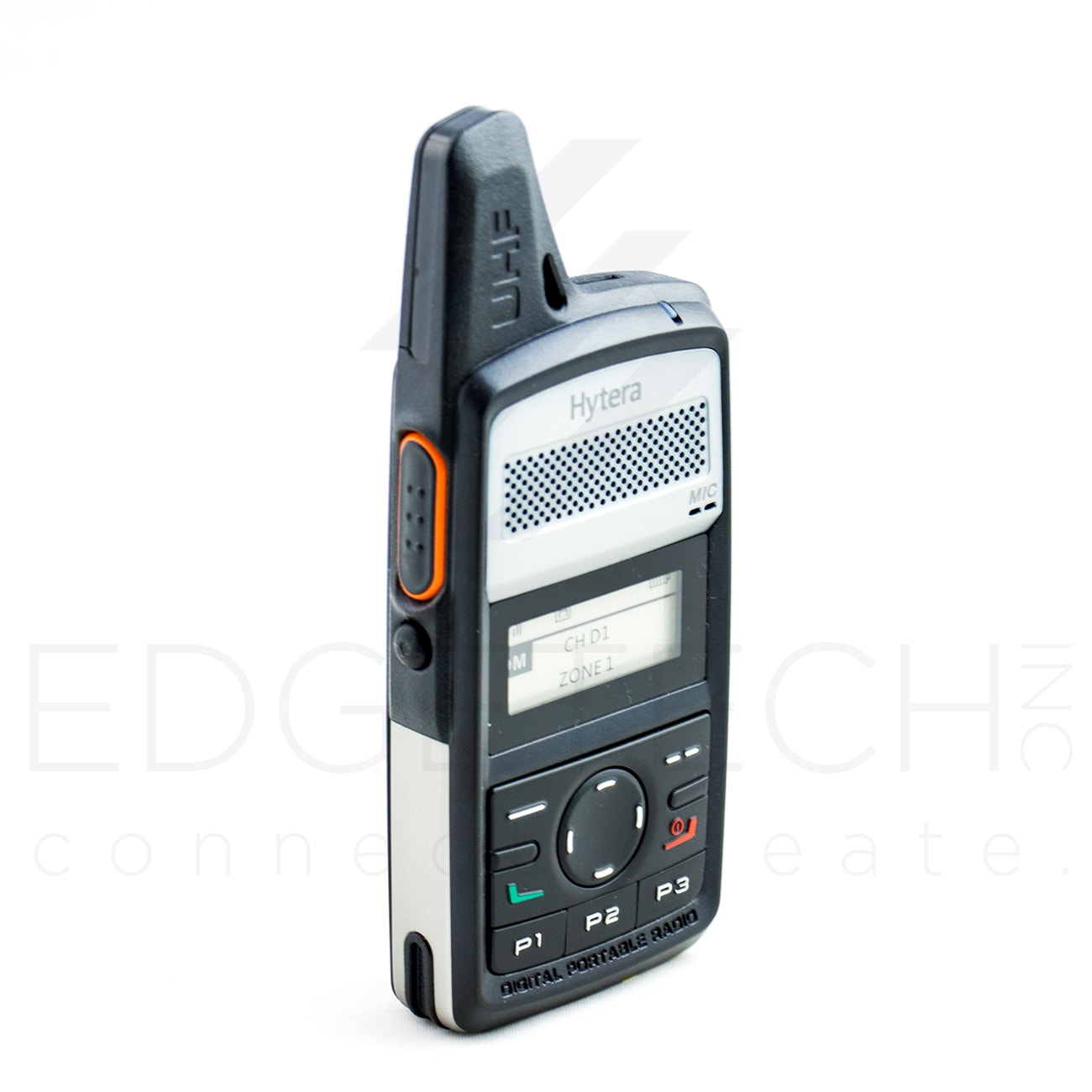

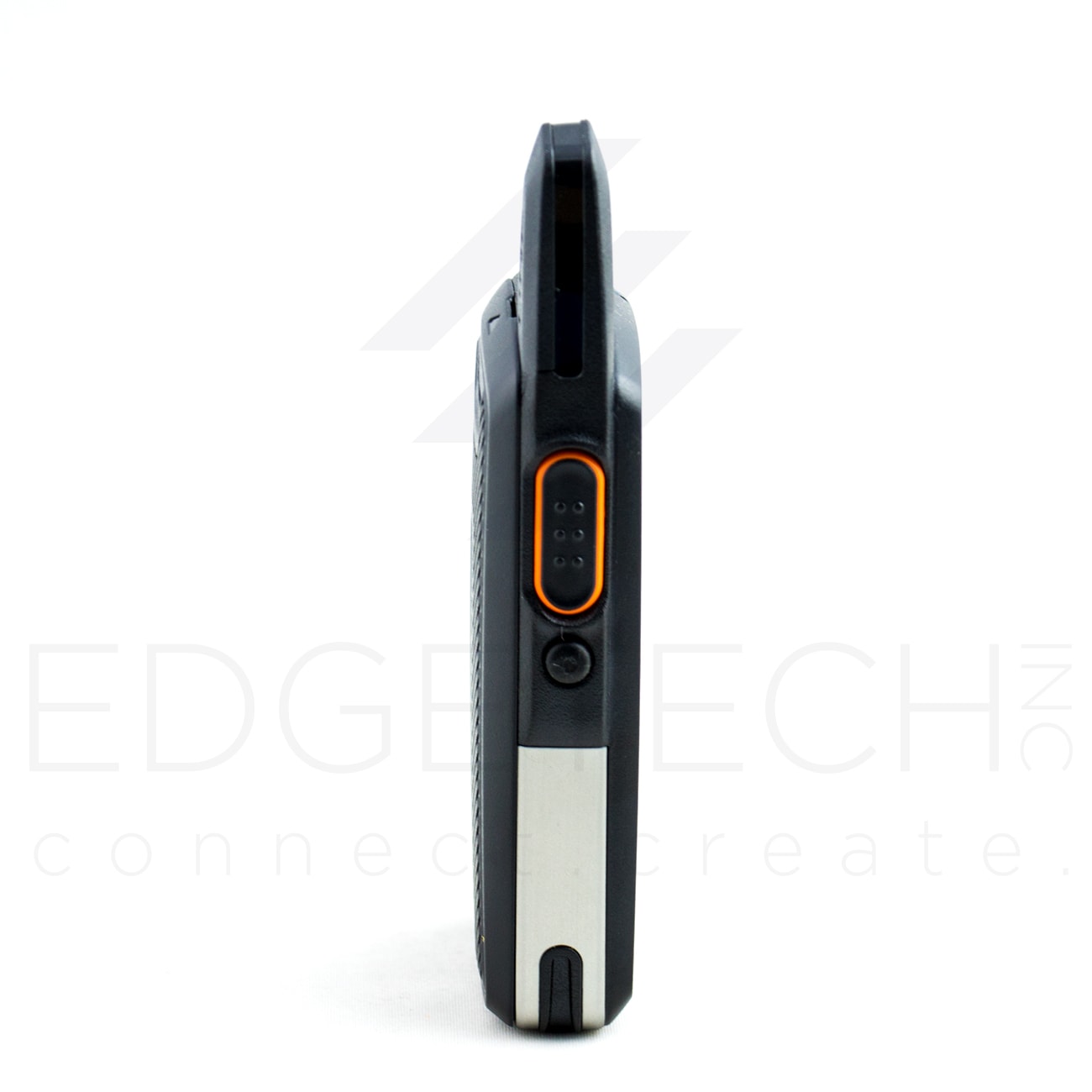

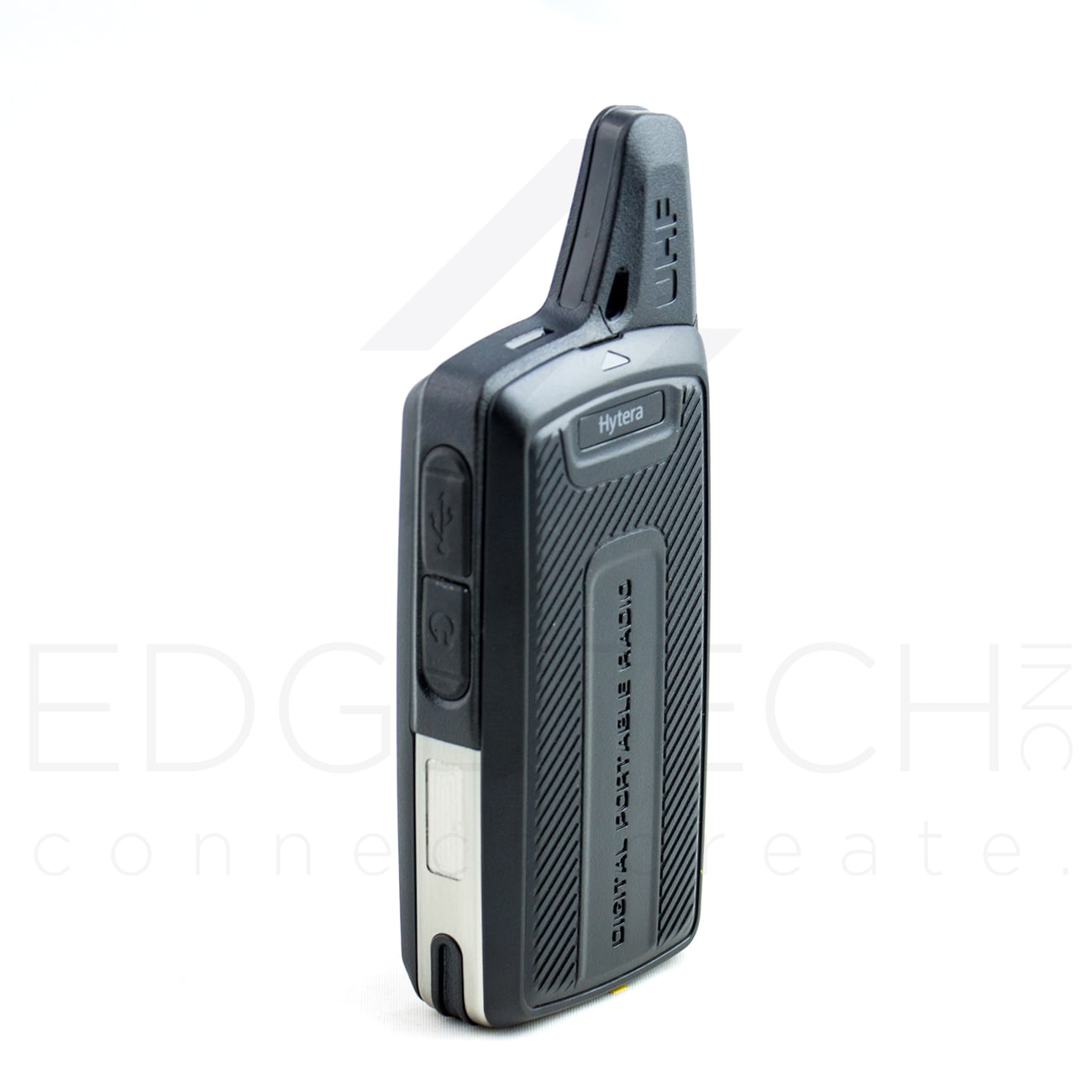

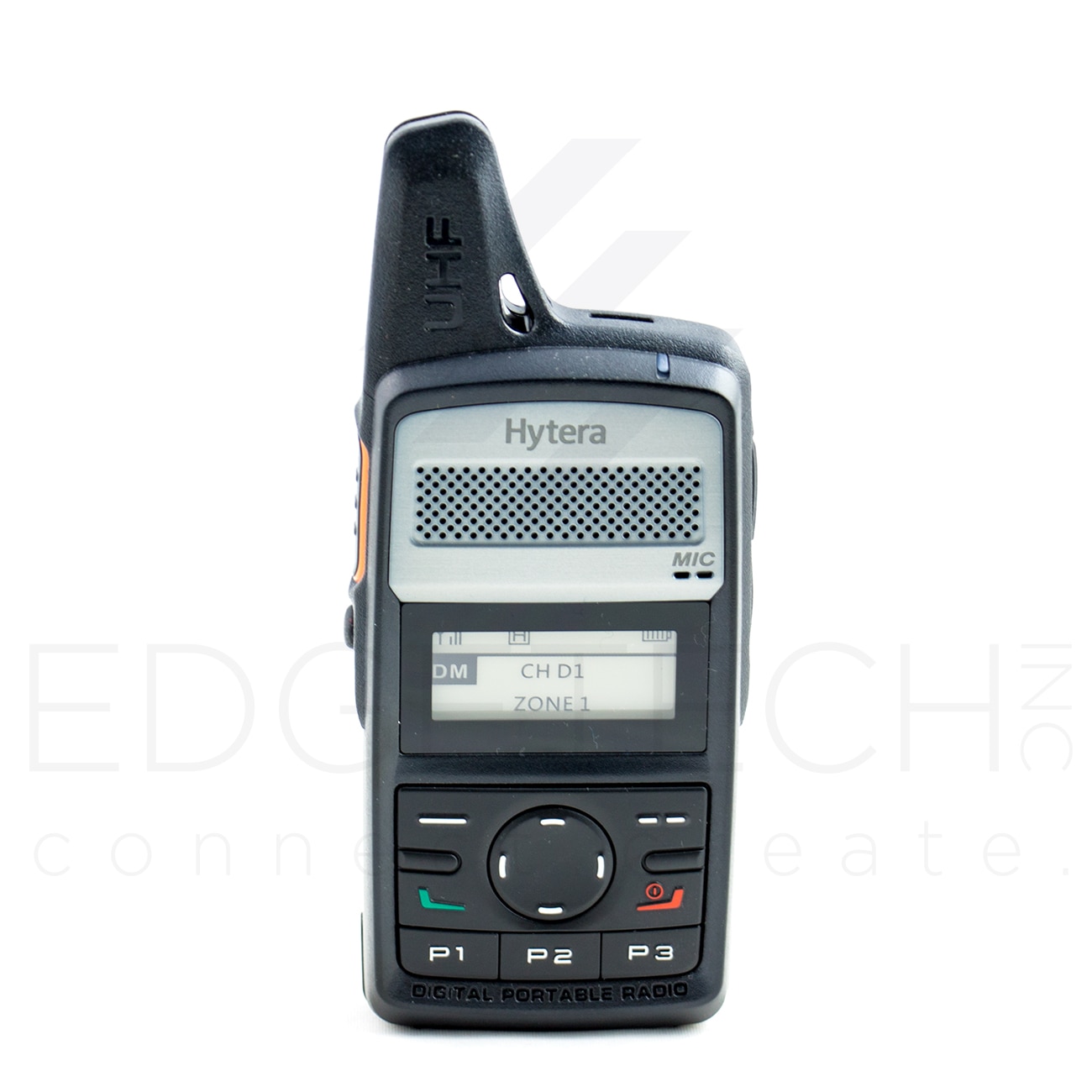

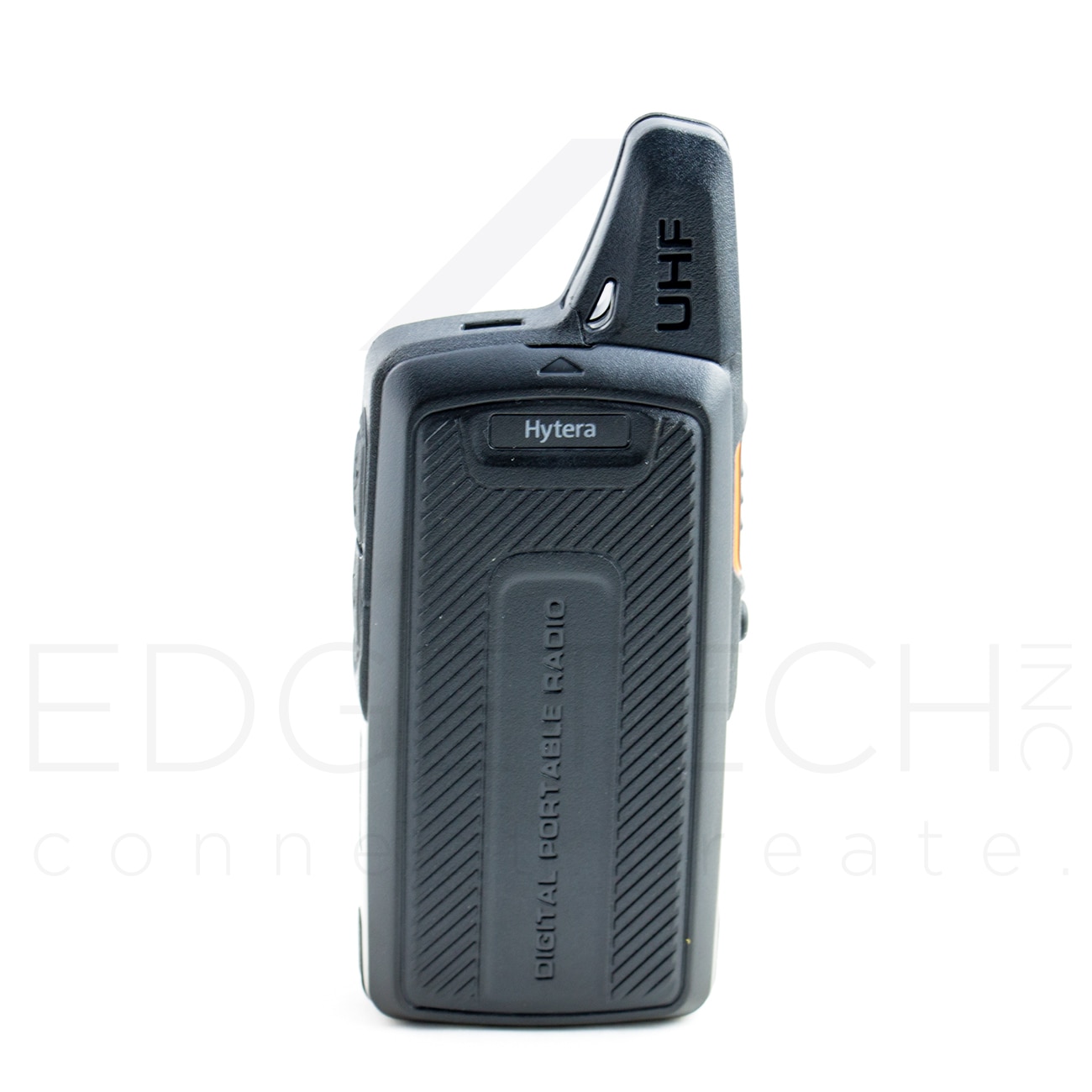

Pocket Size Design
The color display allows good visibility even under extremely strong light. The compact antenna design and light weight PC & Metal frame design. The P362 is 4.84 x 2.17 x 0.91 inches weighing 5.64oz.
Micro USB Port
The Micro USB port allows you to use a standard USB to Micro USB to charge the radio.
Compact Antenna
The creative and compact antenna design makes the PD362 sleek and gives it a cellular phone feel.
Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.
One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.
Simple Scan
Capable of scanning of analog voice/signaling or Digital voice/data.
Versatile Voice Calls
The intelligent signaling supports various voice call types, including Private Call, Group Call , and All Call.
Various Analog Signaling Types
Various analog signaling types various squelch control types (CTCSS / CDCSS), thus providing higher function expansion capacity to the analog world.
Monochrome Display
Two line display with monochrome color and supports messaging with up to 64 characters. |
