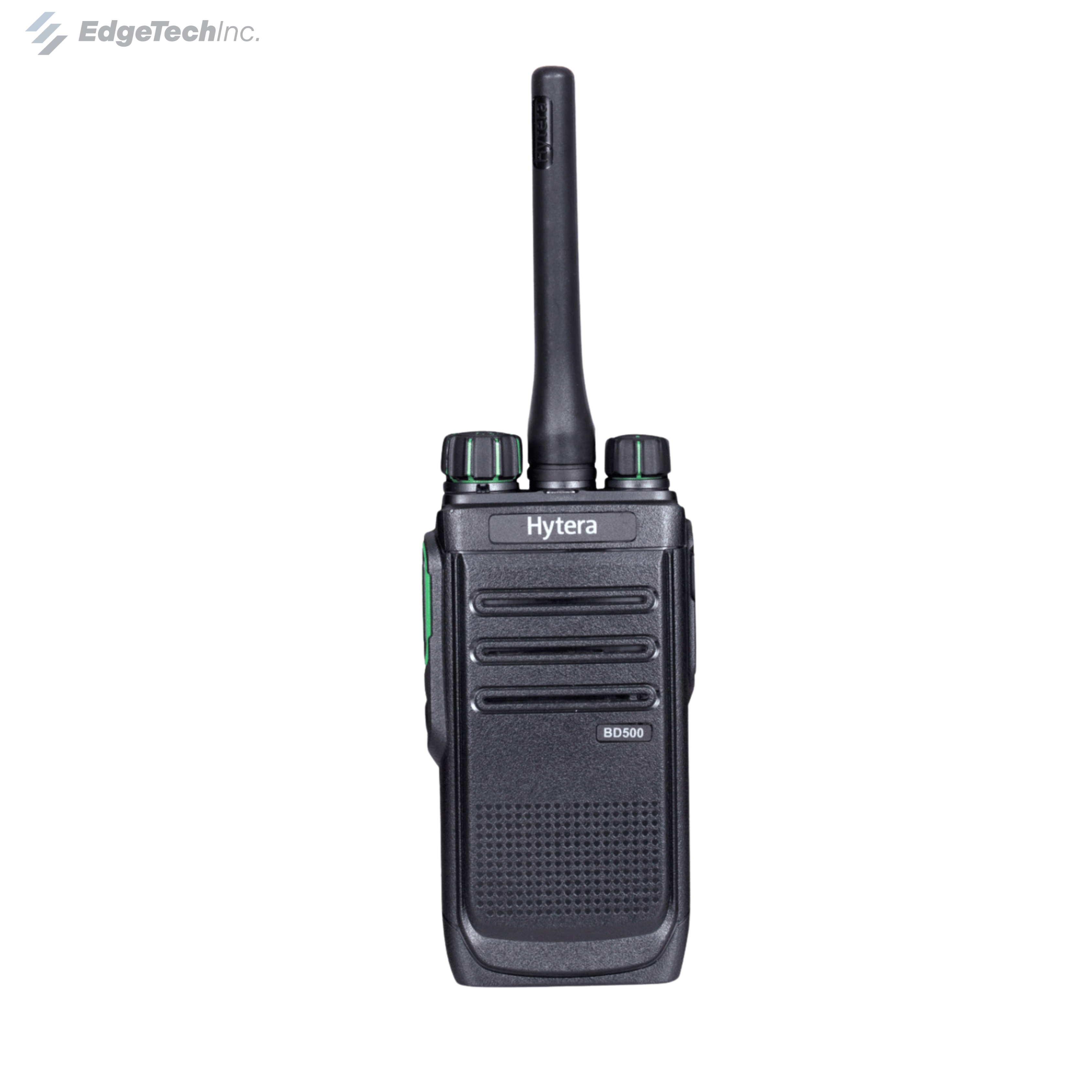

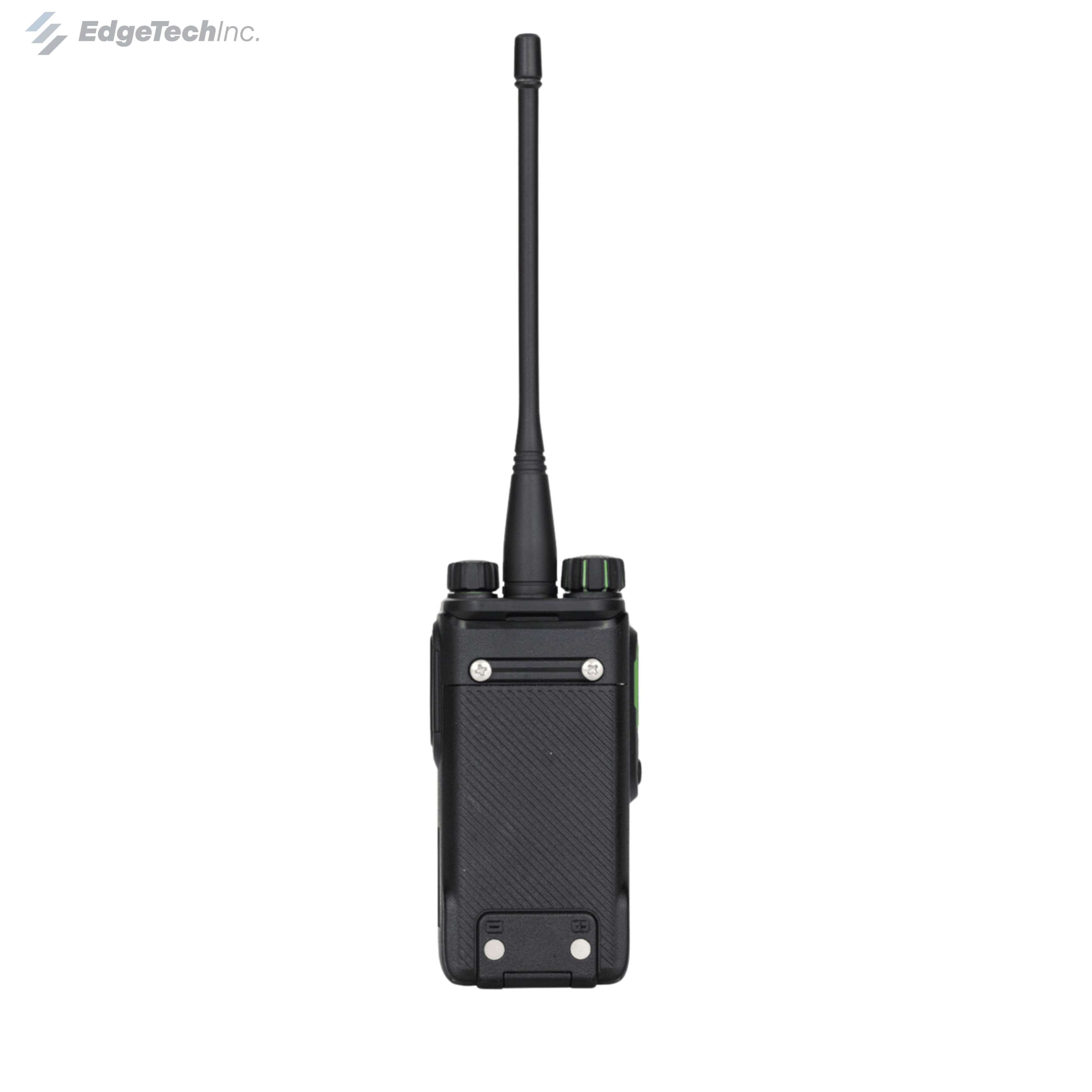

Hytera BD502i-V1
The BD502 is built to uphold Military Standards 810 C, D, E, F, and G, together with temperature shock, vibration, high altitude, and wetness. Additionally, the IP54 mud and waterproof compliance ensure reliability in a wide variety of environments. The radio can operate in digital mode for up to twenty-two hours due to TDMA technology.
Features:
Size 4.25"x2.12”x1.14”; Weight 7.68oz (with 2200mAh battery and AN0435H19)
Dual-mode (analog & digital)
64 contacts in digital mode
12.5/25kHz selectable channel spacing
IP54 dust and water-proof design
48 channels, 3 zones
Battery life: 16 hours under a duty cycle of 5-5-90 @ 1500mAh in digital mode
Clear digital voice call function
Anti-interference
DMR signaling
One-touch call
Digital voice call function
Scan (analog or digital channel only)
MIL-STD-810 C/D/E/F/G standards
Supports mixed (analog & digital) channel receive
Emergency Alarm (via programming)
VOX
Pseudo Trunk
This Item Includes:
VHF Whip antenna 136-174 MHz SMA (AN0160H13)
Battery Li-ion 1500 mAh IP67 (BL1506)
Spring belt clip (BC19)
Clip screws (HYT-7103007500000)
Rapid-rate charger (Li-ion / Ni-MH) with PS1014 transformer (CH10L23-PS1014)
Leather hand strap
User manual
3-year warranty
Item is in stock and usually ships same day if orders are place before 8pm Eastern Standard Time Free Shipping on all orders over $1000 Expedited shipping available for additional cost Shipping rates available in shopping cart Product may be returned if unopened and unused within 7 days of purchase Returns after 7 days or for products that demonstrate usage will not be accepted for returns but accepted as warranty repairs only
Compact and lightweight BD302i Series radios provide cost-effective and easy-to-use radio communications with excellent performance.
The Hytera BD302i is an entry-level, grab-and-go digital radio that requires minimal training for users. The BD30i supports the 400 to 470MHz UHF frequency range with 48 Channels and 3 Zones (16 Channels per Zone). The BD302i has 2W of output power, which provides a suitable range for small and medium workplaces like retail, hospitality, and single-site school campuses. Weighing only 5 ounces, the lightweight and compact design makes the BD302i easy to carry and operate for long shifts.
Technical Specifications
General
Frequency Range
UHF 400-470MHz
Channel Capacity
48 Channels (24 Analog, 24 Digital)
Zone Capacity
3 Zones with 16 Channels per Zone
Channel Spacing
25/12.5kHz
Operational Voltage
3.8W
Battery
2200mAh (Li-Ion)
Battery Life (5/5/90)
16 hours Digital, 12 hours Analog
Weight
5 ounces (140g)
Dimensions
3 31/32” x 1 15/16” x 1 1/32” (101 x 49 x 26mm)
Frequency Stability
± 0.5ppm
Antenna Impedance
50?
Receiver
Digital Sensitivity
0.22µV (BER 5%)
Analog Sensitivity
0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD)
Adjacent Selectivity
TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz
Spurious Response Rejection
TIA-603: 70dB @ 12.5/25kHz
Intermodulation
TIA-603: 65dB @ 12.5/25kHz
Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
?5%
Audio Response
+1 to -3dB
Conducted Spurious Emission
<-57dBm
Transmitter
RF Power Output
UHF High Power: 2W UHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting
±2.5kHz @ 12.5kHz
FM Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power
60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response
+1 to -3dB
Audio Distortion
?5%
Digital Vocoder Type
AMBE++
Digital Protocol
ETSI-TS102 361-1,-2,-3
Environmental
Operating Temperature
-22oF to +140oF (-30oC to +60oC)
Storage Temperature
-40oF to +185oF (-40oC to +85oC)
ESD
IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air
Dust and Water Ingress
IP54 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration
Per MIL-STD-810 C/D/E/F/G Standard
Functions
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calling.
ANALOG OR DIGITAL OPERATION
The BD302i operates in analog or digital mode. Allows switching between the two modes for communication with analog radios.
HIGH QUALITY AUDIO
DMR digital technology provides excellent audio quality for reliable communication
EXTENDED TALK RANGE
Hytera’s innovative receiving technology extends talk range
LONG-LIFE BATTERY
Powerful 2200mAh Lithium Ion batteries enable up to 16 hours of operation in digital mode and 12 hours in analog
RELIABLE AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration. IP54 rated for water and dust resistance.
SCANNING
Allows listening to communication activities on other channels.
EMERGENCY CALLING
One-touch Emergency Alarms can be sent to other radios with the programmable button. Improves worker safety and emergency response time.
ANTI-INTERFERENCE
Digital encoding and error correcting reduces signal interference on the same frequency.
DMR
DMR signaling enables group call, private call, and all call transmitting with PTT ID. Supports DMR Tier II repeaters to extend coverage.
PSEUDO TRUNKING
Automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency.
AUDIO CHANNEL ANNOUNCEMENT
Voice announcement of channel number for quick and accurate channel switching, even in low visibility.
VOX
Voice activated microphone enables hands free operation. Also supported on external earpiece and microphone accessories.
