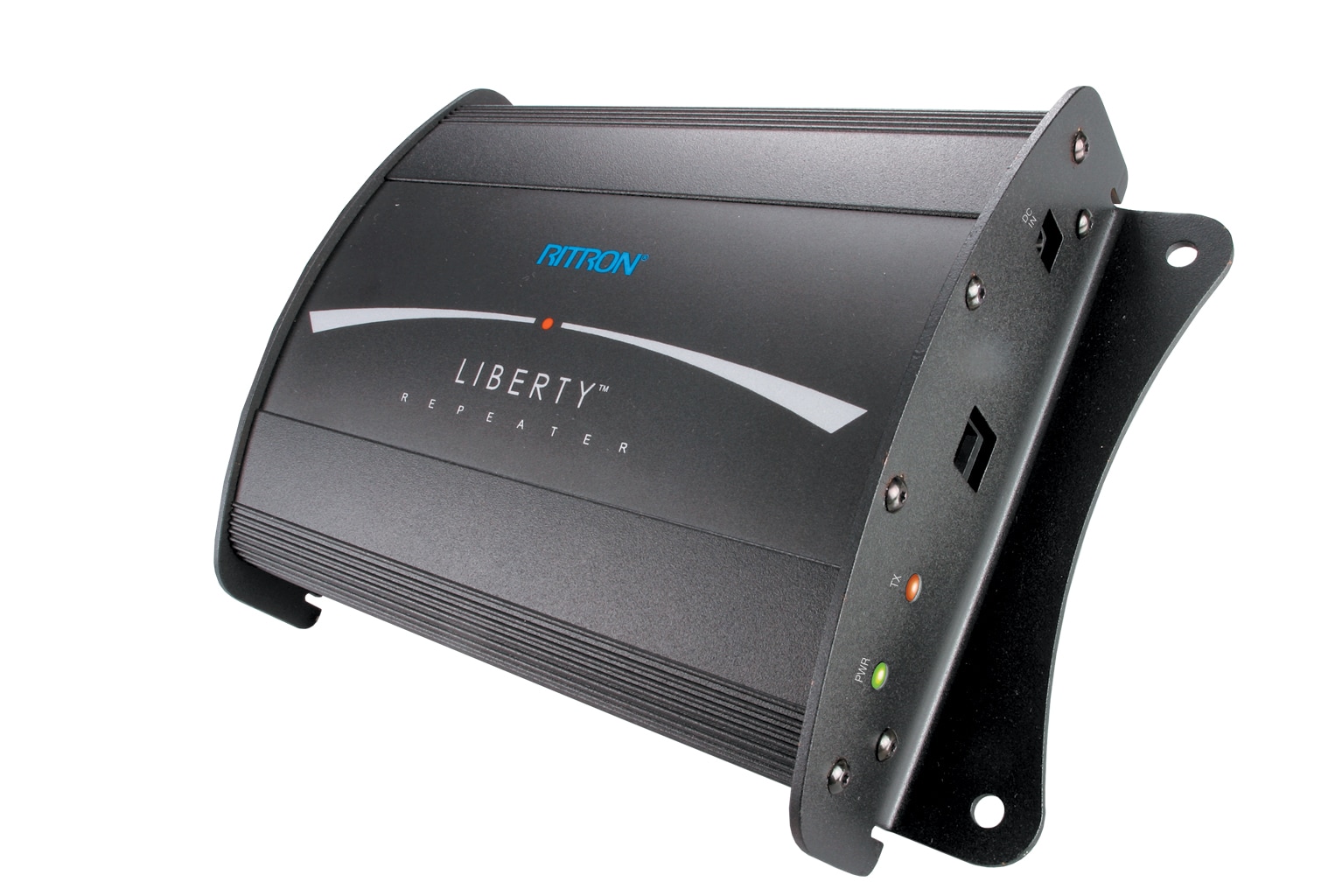

Ritron RLR-465-N Full Duplex UHF Repeaters
The Ritron Liberty Repeater provides the compact, wireless solution for on-site
communications. This full duplex repeater is mainly designed for areas in which two way radios alone are not efficient to cover the space. The repeater is ideal for golf
courses, warehouses, industrial plants, schools, and retail stores as the repeater provides
full radio coverage at a minimal cost.
The RLR-465-N Liberty Repeater is a 5 watt, full duplex repeater explicitly intended for regions in which two way radios alone are not exactly ready to cover. Fairways, distribution centers, mechanical plants, schools, stores, schools, and different areas that are only somewhat bigger than a handheld can deal with without anyone else would now be able to get the full radio inclusion they need at negligible expense.
The Liberty Repeater offers strong radio correspondence starting with one radio then onto the next to for all intents and purposes dispose of dead spots and blurring with your radio sign. It includes a totally incorporated 450-470 MHz UHF narrow band full duplex repeater and duplexer 1 channel with 1 CTCSS or 2 DCS Tones. It additionally has a sort N connector recieving wire port and RPS-1500 10 VAC-12 VDC 1.5A power supply.
The Liberty Repeater is little, yet rough. It is encased in a powder covered, all-metal, expelled aluminum lodging with worked in mounting ribs for simple establishment where you need it.
At the point when you need more radio inclusion than your two way radios can give individually, a Ritron Liberty Repeater can give your remote correspondences that additional lift you need.
Features -
Dimensions: 2.125" H x 8.0" W x 5.75" D
110 VAC to 12 VDC Wall-Mount Power Supply
450-470 MHz Narrow band UHF Frequencies
RJ-12 Jack For Remote Speaker Microphone
LED indicators
Item is in stock and usually ships same day if orders are place before 8pm Eastern Standard Time Free Shipping on all orders over $1000 Expedited shipping available for additional cost Shipping rates available in shopping cart Product may be returned if unopened and unused within 7 days of purchase Returns after 7 days or for products that demonstrate usage will not be accepted for returns but accepted as warranty repairs only
Frequency:
Watts:
Channels:
Warranty:
The NEW 5 Watts Liberty Repeater is the perfect wireless solution for on-site communication needs. Industrial plants, schools, retail stores, golf courses, and other "tough-to-cover" applications no longer need to suffer from the range and coverage limitations common to all brands of portable two-way radios.
The Liberty repeater provides rock solid communication from one radio to another... virtually eliminating shadowing, fading, and dead spots.
Rugged and compact, the Liberty repeater is a completely integrated wireless solution. The Liberty an integrated, full-duplex, PC programmable on-site repeater.
Its all-metal, powder coated, extruded aluminum housing provides durability and protection for the electronics and duplexer, while built-in mounting flanges make the Liberty easy to install.
WIDE BAND 25 kHz
NARROW BAND 12.5 kHz
Models:
RLR-465-W
RLR-465-N
FCC ID:
AIERIT15-460
AIERIT15-460
IC:
1084A-RLR-460
1084A-RLR-460
FCC Parts:
90, 95A
90, 95A
Dimensions:
2.125H x 8.0" W x 5.75" D
2.125H x 8.0" W x 5.75" D
Weight:
3.5 lbs.
3.5 lbs.
Emission Designators:
16K0F3E
11K2F3E
Operating Frequency Range:
450-470 MHz
450-470 MHz
Frequency Separation:
TX/RX: 5.0 MHz
TX/RX: 5.0 MHz
RF Channels:
(1) TX/RX Channel
(1) TX/RX Channel
Synthesized Steps:
12.5 kHz
12.5 kHz
Tone/Code Signalling:
QC (Quiet Call) or
QC (Quiet Call) or
DQC (Digital Quiet Call) mode
DQC (Digital Quiet Call) mode
Power Requirements:
12 VDC nominal @ 1A min.
12 VDC nominal @ 1A min.
Local Audio Output:
1/ 2 Watt into 8 Ohms
1/2 Watt into 8 Ohms
Hang-Time Timer:
0 to 8 seconds, programmable
0 to 8 seconds, programmable
Squelch Tail Eliminator Timer:
0 to 8 seconds, programmable
0 to 8 seconds, programmable
Time-out Timer:
0 to 30 minutes, programmable
0 to 30 minutes, programmable
RF Connector:
"N" Type
"N" Type
DC Power Connector:
P-5 (2.1mm* 5.51mm*9.5 mm)
P-5 (2.1 mm X 5.51mm X 9.5 mm)
Antenna Impedance:
50 Ohms
50 Ohms
Test Speaker Microphone:
RJ-12
RJ-12
TRANSMITTER
RF Output @ antenna port:
5 Watt
5 Watt
Frequency Stability:
+/- 1.5 PPM (-300 C to +500 C)
+/- 1.5 PPM (-300 C to +500 C)
Modulation:
Direct FM
Direct FM
Deviation:
0 to +/- 5 kHz, adjustable
0 to +/- 2.5 kHz, adjustable
Spurious & Harmonics:
< -36 dBm
< -36 dBm
Audio Response:
10 to 2500 Hz (+/- 3 dB)
10 to 2500 Hz (+/- 3 dB)
FM Hum & Noise:
-50 dB
-45 dB
Duty Cycle:
100%
100%
RECEIVER
Receiving System:
Fixed Tuned, Dual Conversion
Fixed Tuned, Dual Conversion
Superheterodyne
Superheterodyne
IF System:
43.65 MHz/450 kHz
43.65 MHz/450 kHz
Local Oscillator:
Low Side Injection
Low Side Injection
Sensitivity (12 dB SINAD):
0.28 uV through duplexer
0.28 uV through duplexer
Selectivity (EIA):
-75 dB @ +/- 25 kHz
-65 dB @ +/- 12.5 kHz
Spurious Rejection (EIA):
-75 dB
-75 dB
Image Rejection (EIA):
-80 dB
-80 dB
Intermodulation Rejection (EIA):
-70 dB
-70 dB
Frequency Stability:
+/-1.5 PPM (-300C to +500C)
+/-1.5 PPM (-300C to +500C)
Noise Squelch Sensitivity:
8-18 dB SINAD, adjustable -
8-18 dB SINAD, adjustable -
factory set to open @ 12 dB
factory set to open @ 12 dB
Audio Frequency:
10 Hz to 3 kHz
10 Hz to 3 kHz
• Integrated Full Duplex Repeater with Duplexer • Frequency Range: 450-470 MHz (400-430 MHz available soon) • Narrow or Wide Bandwidth Versions Available • 5 Watts Output at Antenna Port • Compact Size: 2.125" X 8.0" X 5.75" • 100% Duty Cycle • Available in either 25 kHz or 12.5 kHz bandwidth • PC Programmable, require RPT-PCPK 5.0 kit • Built-in CTCSS, DCS, or Custom CTCSS (60-254 Hz) Signalling • 12 VDC or 110/220 VAC operation • LED Indicators: Power On and Transmit • Morse Code ID'r, TX TOT, TX Hang Timer • Remote Speaker Microphone RJ-12 Jack for Local TX and RX Control • Features "N" Type Antenna Connector • All Metal Extruded Aluminum Housing • Built-in Mounting Flanges for Easy Installation • 1 Year Warranty
